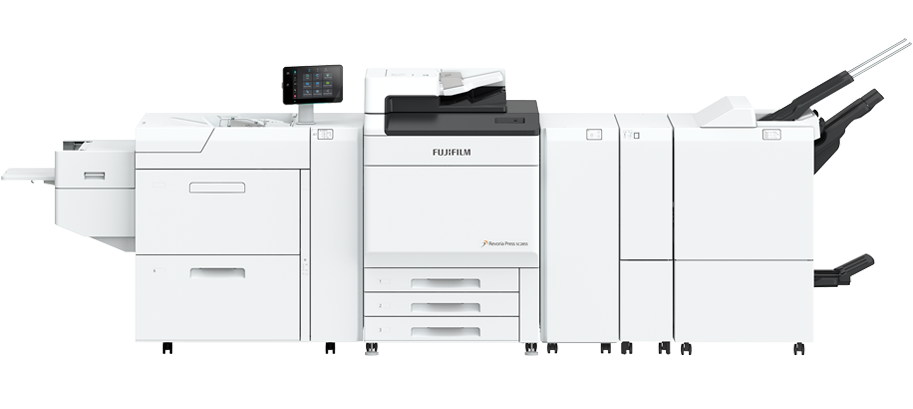

Revoria Press™ SC285S / SC285 Digital Press

Revoria Press™ SC285S / SC285

Differentiate your business with value-added print.

Revoria Press SC285S / SC285 offers advanced print capabilities, typically found on high-end production printers, in a compact size. In addition to high-resolution printing and a range of finishing features, you’ll benefit by offering new, unlimited print possibilities with available specialty toners* used as a fifth color together with CMYK.

* Available with SC285S

See the Specs Download Brochure

See the Specs Download Brochure

Superb flexibility & versatility for a wide range of applications

Up to 85ppm A4 print speed, A3 printing at 47 ppm
A wide range of media weights from 52 to 400gsm with up to 51.1 in banner printing
High-resolution output at up to 2,400 x 2,400 dpi with Super EA-Eco Toner (CMYK)

Experience rich functionality and smooth operability.

Feel the innovative power of expandable color realized in a space-saving design as it paves the way for new printing possibilities.

Supports

CMYK+

specialty colors

Versatile

52 to 400gsm

media weights

Up to

85ppm

A4 print speed

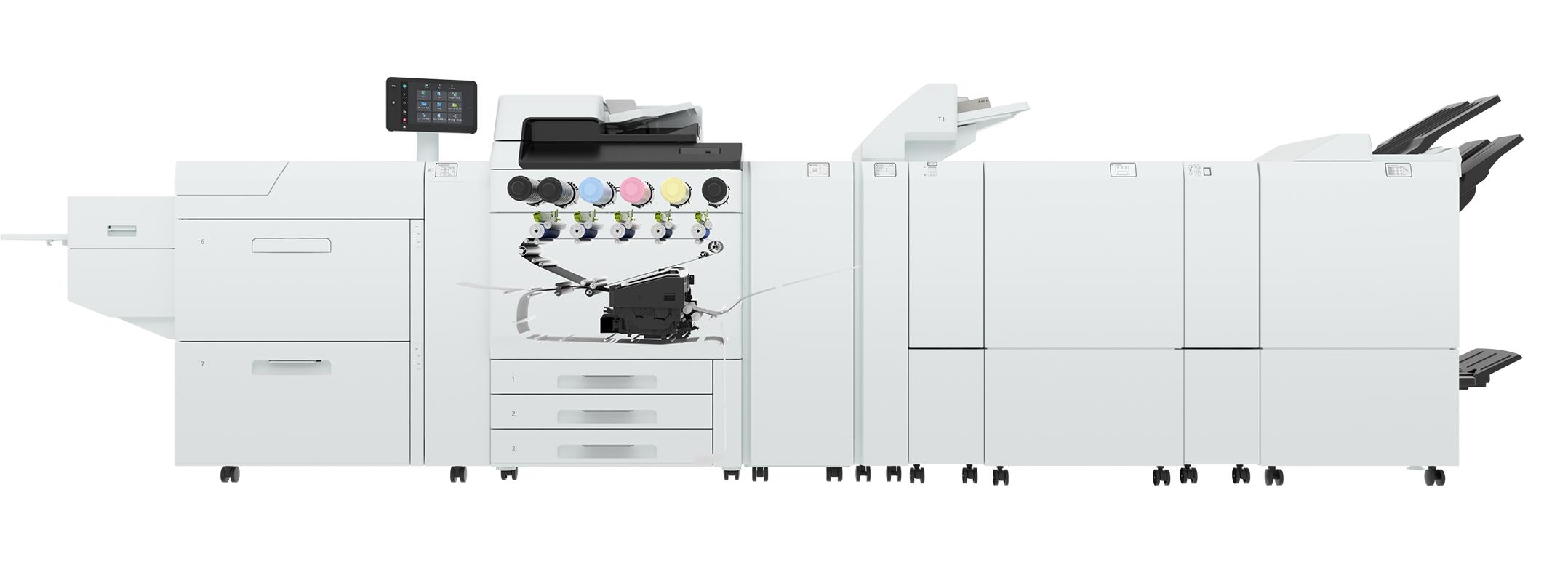

Air suction mechanism / multi-feed detection device – The Air Suction Feeder is installed with a proprietary air suction mechanism to stabilize a wide variety of paper types for high speed feeding, with the Multi-feed Detection Device ensuring documents are printed accurately.

Automatic document feeder – Single pass DADF achieves fast copying and scanning: 85 ppm for copying, 135 ppm (1-sided) for scanning, and 270 ppm for 1 pass 2-sided scanning.

VCSEL-ROS / EA-Eco toner – The VCSEL-ROS provides 2,400 dpi print resolution while the energy-efficient EA-Eco toner* achieves superb results on either coated or uncoated paper to deliver high quality images comparable to offset printing.

Compact belt roll fuser – The compact belt roll fuser provides the uniform heat and pressure needed to fuse images onto a wide variety of paper stocks including heavyweight paper.

Built-in twin decurler – This Revoria Press SC285S / SC285 corrects paper curl, preventing problems that can negatively affect the stable transfer of paper from occurring. The amount of correction can be adjusted to match the size and orientation of any type of paper curl.

Real time curl correction – Adjust the amount of curl in printouts by installing the optional Interface Decurler Module D1.

Discover the Key Features of the Revoria Press™ SC285S / SC285

Discover more about the advanced technologies and capabilities built into the Revoria Press SC285S / SC285

CMYK+ for Added Value

Superb Print Quality

Maximized Productivity and Printing Uptime

Flexibility and Versatility

Intelligent Automation

Revoria Flow

CMYK+ for Added Value

The Revoria Press SC285S allows you to provide higher quality, added value print by utilizing specialty toners as a fifth color, available in gold, silver, clear, pink, and textured paper toner*1, together with CMYK to help differentiate your business. These specialty toners can be printed as an overlay to CMYK and can all be easily and quickly replaced by the user. Unique patented technology improves productivity, image quality, and paper versatility performance all within a compact size.

*1 Availability of White, Gold, and Silver will be announced later.

Superb Print Quality

The Revoria Press SC285S / SC285 use Fujifilm’s advanced Super EA-Eco toner with particle sizes that have been reduced to among the smallest in the industry, and particle shape standardized to enable the super-sharp rendering of detailed characters and fine lines. In addition, with 10-bit depth rendering, gradations, halftones and midtones are reproduced more smoothly and dot shapes more faithfully, delivering exceptional print quality.

Maximized Productivity and Printing Uptime

The Revoria Press SC285S / SC285 are capable of printing up to 85ppm A4 CMYK, and up to 47ppm for A3 CMYK. This speed is achieved for all media weights of between 52gsm and 400gsm. An all new “Vertical Development System” along with an ultracompact LED printhead help maintain a compact, space-saving design.

Flexibility and Versatility

A range of advanced marking technologies have been introduced in the Revoria Press SC285S / SC285 that have improved paper handling capabilities, extending the variety of applications that can be printed, and increasing machine uptime across a wide variety of substrates.

Paper sizes from a minimum of 3.5 × 5.7 in. mm to a maximum of 13 x 51.1 in. (single-sided) are supported. An optional Static Eliminator provides a remarkable static elimination effect on a wide range of media, including single-layer film, synthetic paper, water-resistant paper, and tack paper. The optional Interface Decurler Module D1 offers easy additional curl correction steps, saving the time required for curl adjustments where the printing media is changing frequently.

Intelligent Automation

With the optional Smart Monitoring Gate D1, automatic detection and correction of color density variations and front-to-back misalignments during printing can be performed. Optimization continues throughout the printing process, with little to no decrease in print speed. Real-time correction can be performed during normal printing operations without needing high-level expertise or reliance on special skills.

Revoria Flow

Fujifilm’s Revoria Flow is a next generation Digital Front End (DFE) combining workflow functionality and Fujifilm’s advanced imaging know-how in one all-inclusive package. It has been designed to optimize the advanced features incorporated into the Revoria Press SC285S / SC285.

Finishing applications

Versatile post-processing with a range of in-line finishing options

Discover the range of creative possibilities provided by the modular feeding and finishing options available as part of the Revoria Press SC285S / SC285
