Plockmatic is a global provider of finishing solutions, offering a range of inline and offline systems for digital printing environments. Products include creasers, folders, cutters, and booklet makers, under Plockmatic and Morgana brands. Plockmatic solutions are designed to automate document finishing, creating professional-looking materials with high precision for various media.
Plockmatic 450e/435e Booklet Makers
The Plockmatic 450e/435e is an advanced booklet maker designed for seamless inline integration with the Revoria PC1120. Stapling, folding, spine forming, and full bleed trimming are combined in a single, easy to manage system. for professional-quality booklets.
- Paper Sizes (Inline Mode): A5 (SEF) to SRA3; Handfeed: 145x210mm to 320x660mm (320x620mm with optional RCT).
- Finished Book Sizes (Inline): A6P to A4P; Handfeed: 145x99mm to 320x330mm (320x310mm with optional RCT).
- Stock Range: 64gsm – 300gsm (up to 350gsm on some media).
- Book Thickness (Folded with Staples):
- BF-435e: 2-35 sheets (80gsm).
- BF-450e: 2-50 sheets (80gsm).
- Book Thickness (Folded without Staples): Up to 2 sheets.
- Stapling: Corner & Edge stapling.
- Trimming (Face): 2mm to 231mm.
- Features: 7″ Touchscreen, Set Positioning, Skew Compensation.
- Optional RCT Module: Adds full-bleed trimming, creasing, and rotation for smaller sheets.
- Printer Compatibility:
- Revoria Press PC1120
- Revoria Press E1 Series
- Revoria Press EC2100S / EC2100

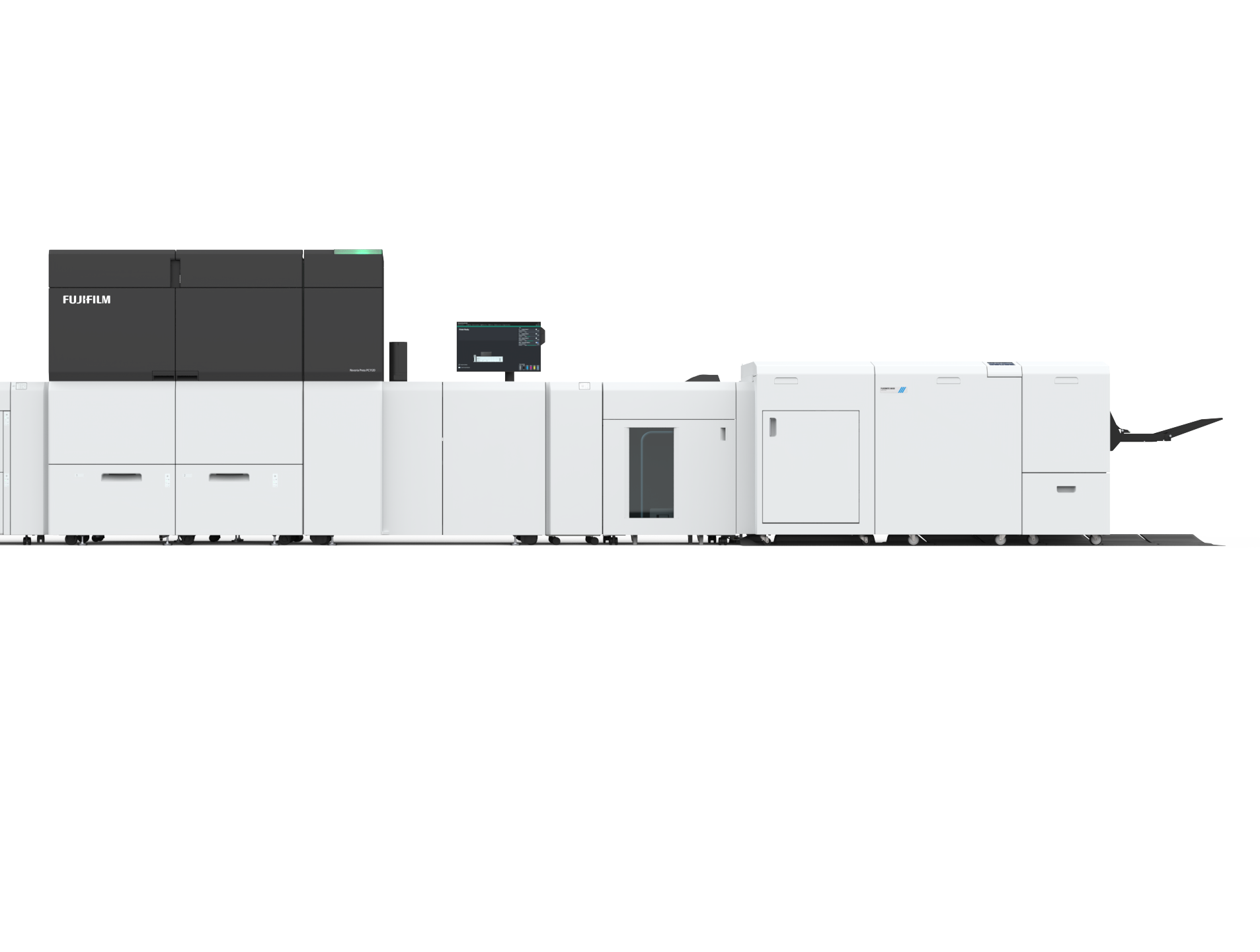

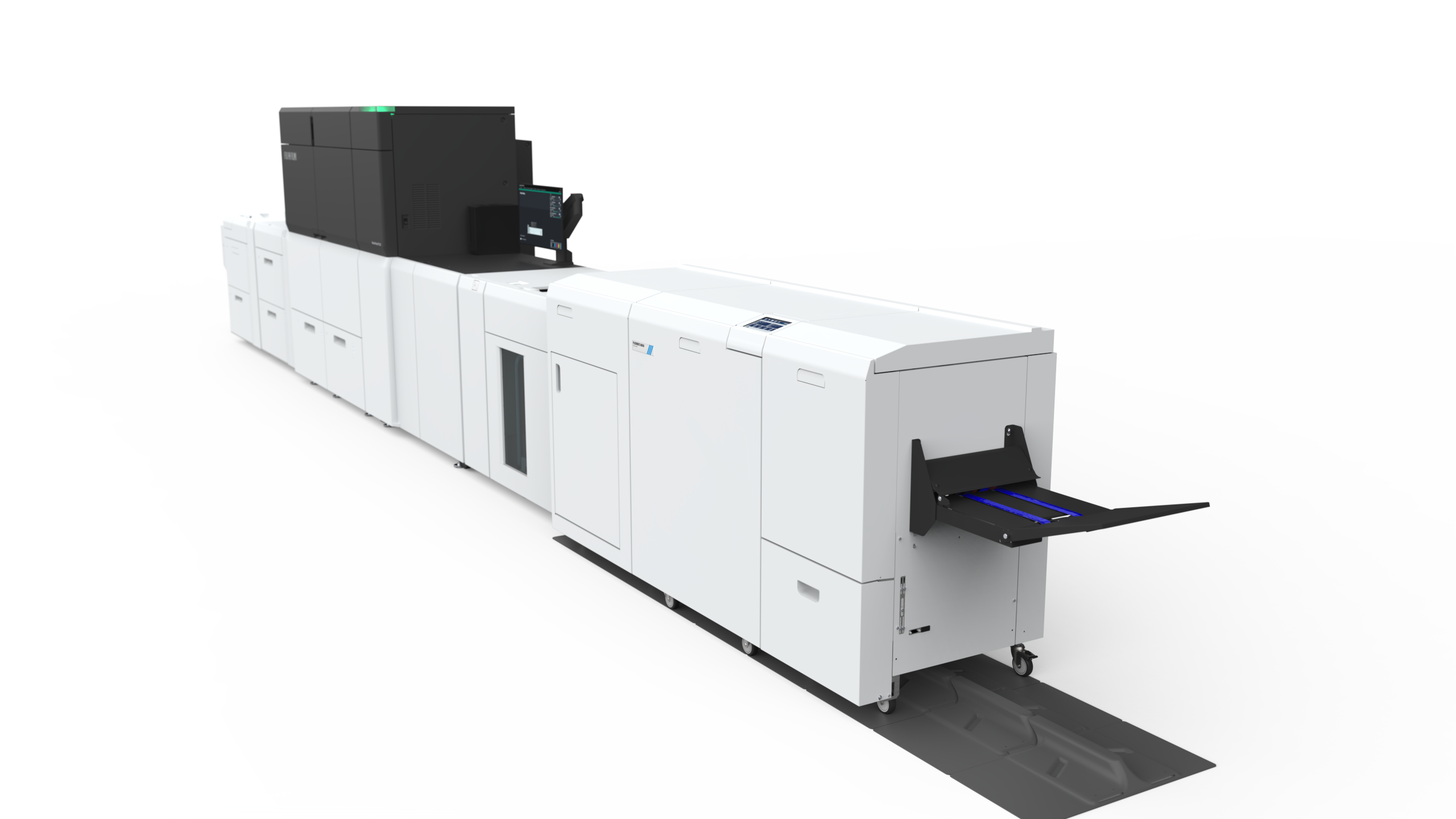

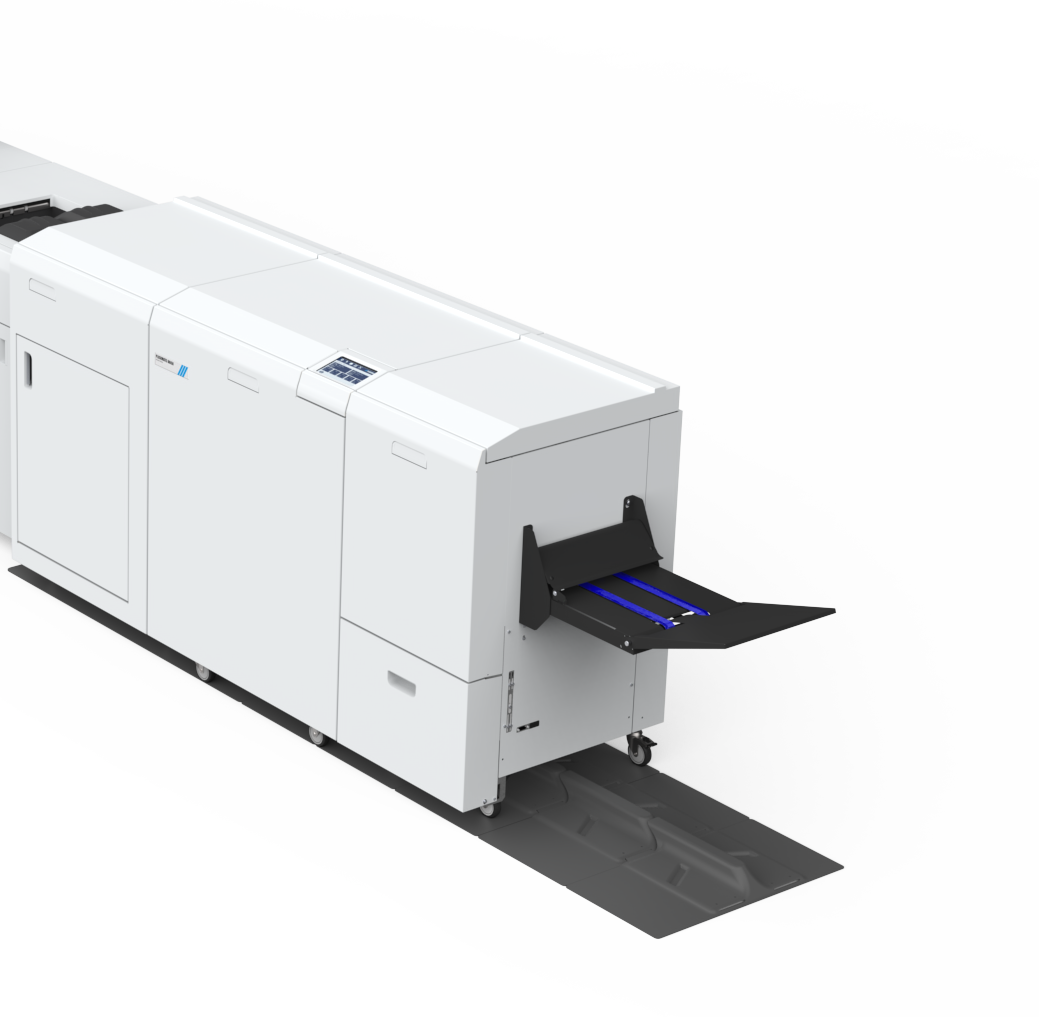

Plockmatic 450e/435e Booklet Maker
The Plockmatic 450e/435e is an advanced booklet maker designed for seamless inline integration with the Revoria PC1120. Stapling, folding, spine forming, and full bleed trimming are combined in a single, easy to manage system. for professional-quality booklets.
Deliver high quality applications
The base unit folds and staples booklets and corner or edge stapled sets up to 140 pages (35 sheets). The BK450e/435e uses the latest patented Plockmatic technologies to deliver top quality output in a wide range of print applications. The set positioning mechanism enables the operator to easily adjust the staple and fold position on the fly.

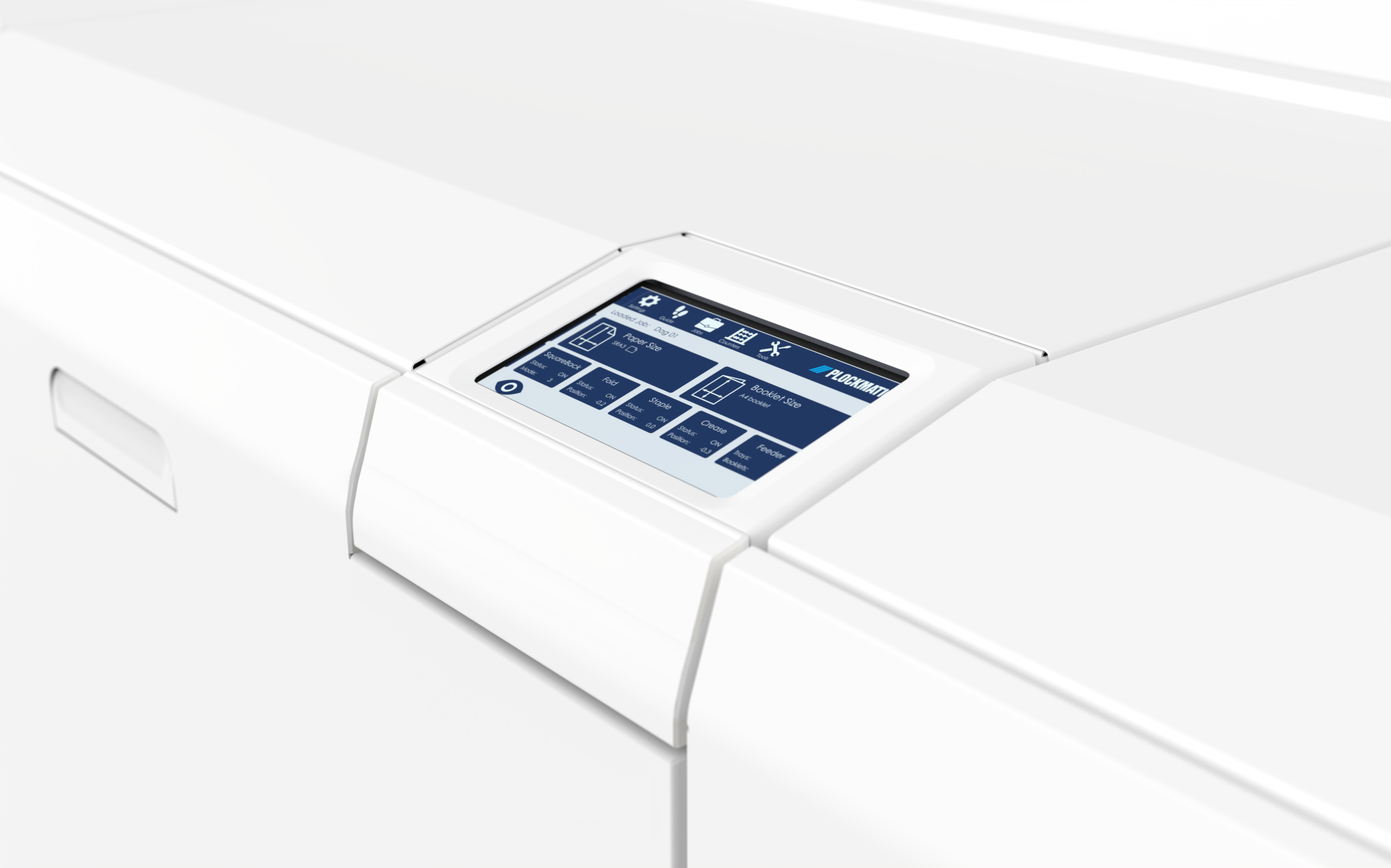

User Interface
User-friendly 7″ touchscreen graphical interface with easy job setup and adjustment of applications.
Skew adjustment for a perfect result
The new generation Plockmatic booklet makers make achieving high-quality results easier than ever. The advanced set compiler offers higher precision folding and control with adjustable skew compensation. This feature corrects poorly cut paper or shrinkage during the printer fusing process directly through the user interface.
